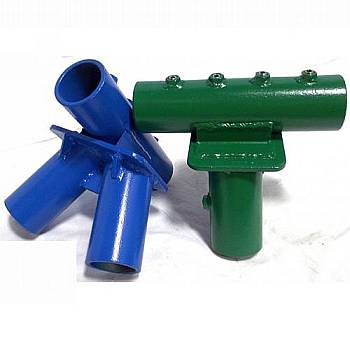

Metal Middle Frame Fitting

Steel Metal Swing Set

This steel Middle Frame Fitting fits in the middle of a metal swing set frame between each set of two swing positions. This piece is a heavy-duty, two legged Middle Frame Fitting for 2 3/8" legs. These are designed to be used with schedule forty 2" pipe. To figure the length of pipe needed take the SIN of 65 degrees = .96 = Height and then divide by the length of the pipe. For example: a ten foot pipe would be 8 ft 10" above the ground. National Test Lab Results: 5000 lbs. Grade: Commercial. These fittings include all the hardware required to attach to the 3 pipes.

Pipe Leg Lengths Needed for Different Swing Beam Heights
(Leaves approximately 2ft of pipe in the ground)

8ft High Beam

9ft High Beam

10ft High Beam

11ft High Beam

12ft High Beam

11ft 6in

12ft 8in

13ft 10in

15ft

16ft 2in

Each 2 swing position beam should be at least 9ft in width. Schedule 40, 2 Inch pipe is recommended. Schedule 40, 2" pipe is 2" inside diameter and 2-3/8" outside diameter.

Features:

Heavy Duty Set Screws to securely hold pipe in place.

Requires Schedule 40, 2 Inch pipe

1/4" Thick Welded Steel Construction

Powder Coated in Blue or Green
