Sectional Scoop Slide - Residential
(Small Sectional Slide)

Sectional Scoop Slide - Residential

Straight Scoop Slide for longer slide needs. Heavy Duty



This Sectional scoop slide is one Heavy Duty straight slide. New design released January 2018, is made with strong rotationally molded polyethylene sections. The slide will fit inside an opening width of 24in. Typical slide has 1 entrance and one exit section and inserting one or more middle sections, it can easily be configured to make slide lengths of about 10ft, 12ft, 14ft, 16ft or longer. Slides for decks heights of over 10ft will need to be put on a hillside or have adequate supports built for it by owner.

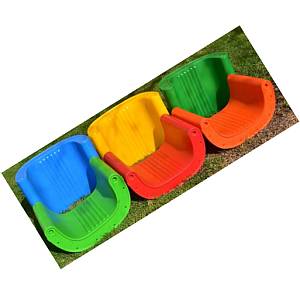

Sectional Scoop Slide Colors
Sectional Scoop Slide Colors & Dimensions

The approximate length of a typical straight slide is usually about double the deck height to which it will be attached. EX: 7ft deck needs about a 14ft long slide. The Sectional Slide lengths are a bit smaller for a fun slide experience. They have longer exit slow down length for safety.

Use of additional bracing (not included) may be needed for slide lengths greater than 16ft long.

This new design has strong thicker higher walls. This makes it safer as it is much more resistant for your child to tip-over the sides. This deeper scoop design gives a higher degree of safety than those typical straight slides sold by big box and hardware stores.

It is highly recommended that only one child uses the slide at a time. Who wants to see the slide buckle when a 2 or 3 heavier kids (~80 lbs each) slide down at the same time? It has a 300 lbs recommended weight limit unlike the typical 150 lbs limit of other straight slides.

Sectional Scoop Slide Dimensions

Deck Height Slide Length* / Projection** Hardware Included Our Price
3 feet 60in/48in 18 Bolts - 18 Nuts - 36 Washers - 6 Plugs $375.00
4 feet 73in/55in 24 Bolts - 24 Nuts - 48 Washers - 8 Plugs $450.00
5 feet 103in/84in 36 Bolts - 36 Nuts - 72 Washers - 12 Plugs $800.00
6 feet 115in/90in 42 Bolts - 42 Nuts - 84 Washers - 14 Plugs $875.00
7 feet 146in/119in 54 Bolts - 54 Nuts - 108 Washers - 18 Plugs $1,025.00
8 feet 156in/123in 60 Bolts - 60 Nuts - 120 Washers - 20 Plugs $1,250.00
9 feet 186in/151in 72 Bolts - 72 Nuts - 144 Washers - 24 Plugs $1,375.00
10 feet 200in/160in 78 Bolts - 78 Nuts - 156 Washers - 26 Plugs $1,475.00
* Approximate length of slide from Start to End
** Approximate horizontal distance the slide will project from where it starts.
We recommend a minimum 3ft unencumbered safe zone all around the slide exit. Hardware to attach the Top/Entrance to the upper deck is NOT INCLUDED.


Sectional Scoop Slide Instructions

Sectional Scoop Slides are shipping NOW!!.

** Hardware to attach the Top (Entrance) to the upper deck is NOT INCLUDED as we do not know the thickness or type of material makeup to which it will be attached. 4 Bolt sets (consists of 1 bolt, 1 nut & 2 washers) or 4 Lag Bolt sets (consists of 1 Lag & 1 washer) can be used to connect the Top Entrance.

Features of Sectional Scoop Slide
  • Designed in 2018 to virtually eliminates most seam gaps.
  • ~3" thick Double walled rotational molded polyethylene. SUPER STRONG
  • 300 lbs recommended weight limit
  • 24" width needed for mounting with 14" opening for slide entrance.
  • Recommended for ages up to 12 years old.
  • 13-1/2" inside dimension seat width
  • 7-1/2" tall walls helps keep kids on slide.
  • Easy to follow instructions
  • Assembles in about 30 to 60 minutes depending on length
  • NO ADDITIONAL BRACING REQUIRED Up to 10ft deck heights
  • All hardware included
  • Colors: Blue, Green, Red, Yellow, Lime and Orange. (Lime and Orange have limited availablity and stock is fluid and may not be available for immediate shipping)
  • 1 Year Warranty in Residential Use Only.

  • Sectional Scoop Slide - Residential - ID#:JSP-Scoop
    Mfg'd By: Jensen Swing Products Inc.  SKU#:Scoop
    Color:
    Deck Height:
    Shipping Charge:
    Regular Price: $595.00
    Sales Price: $375.00
    You Save $220.00 or 36.97%

    Availability: Usually ships within 7-10 business days.


    Due to the thermo dynamics and lower heat transfer properties of plastics, plastic slides are preferred over metal slides for playet equipment. Although plastic slides may become as hot as metal, they insulate better and do not transfer the heat as quickly. Because of these properties, the Consumer Product Safety Commission (CPSC) recommends plastic slides and plastic surfaces over bare metal.

    Regardless of lower heat transfer properties, plastic play equipment can still become hot enough in extreme temperatures and direct sunlight to cause burns. Plastic slides are safe, tried and true, but as is the case with all playground equipment, parents and supervisors must monitor the children in their care, make certain that the equipment is appropriate for their age, and always check playground surfaces for excessive heat before allowing children to play. Reduce the heat by simply using cool water on the slide.
